HT Series IP65 Outdoor Waterproof PC Plastic Electrical MCB Distribution Box
Caratteristiche principali:
Inlet and Outlet Options Several
The box is designed with pre-reserved inlet and outlet holes and includes matching nylon joints for more waterproofing options.

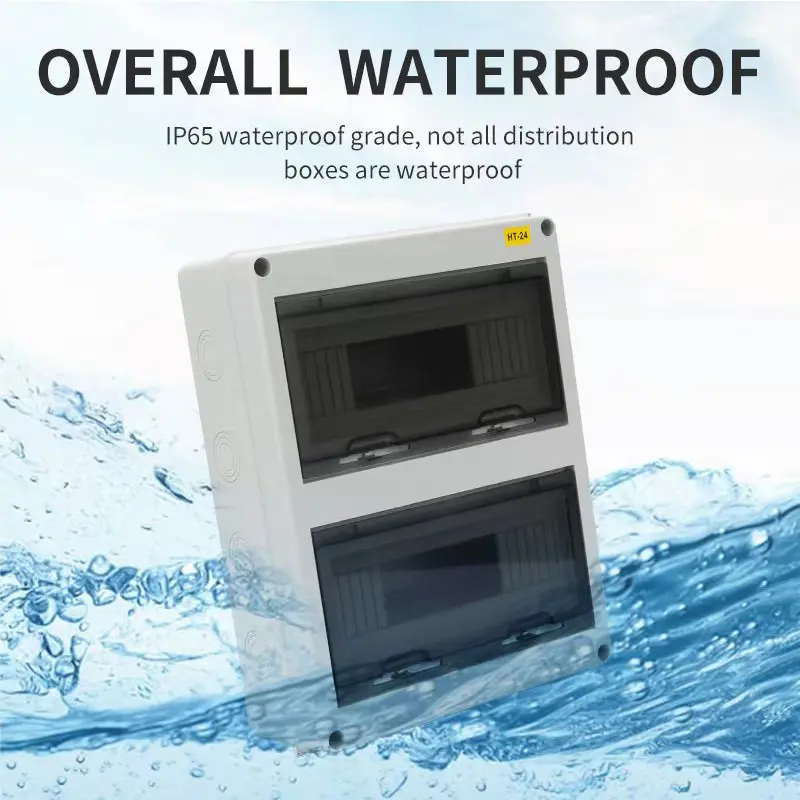

PVC Waterproof Strip
A resilient anti-corrosion PVC strip has been attached to the box for durable waterproofing.
Flexible Installation Design
Pre-drilled mounting holes and one 35mm mounting rail allow for easy installation of zero-row and earth bar terminals where required.
Multi-Purpose Mounting
Housings provide several reserved mounting holes to accommodate easier and more adaptive methods for installation in various environments.
Robust Housing
Casing made from impact-resistant polycarbonate or ABS is suited for tough industrial conditions.
Specifiche del prodotto

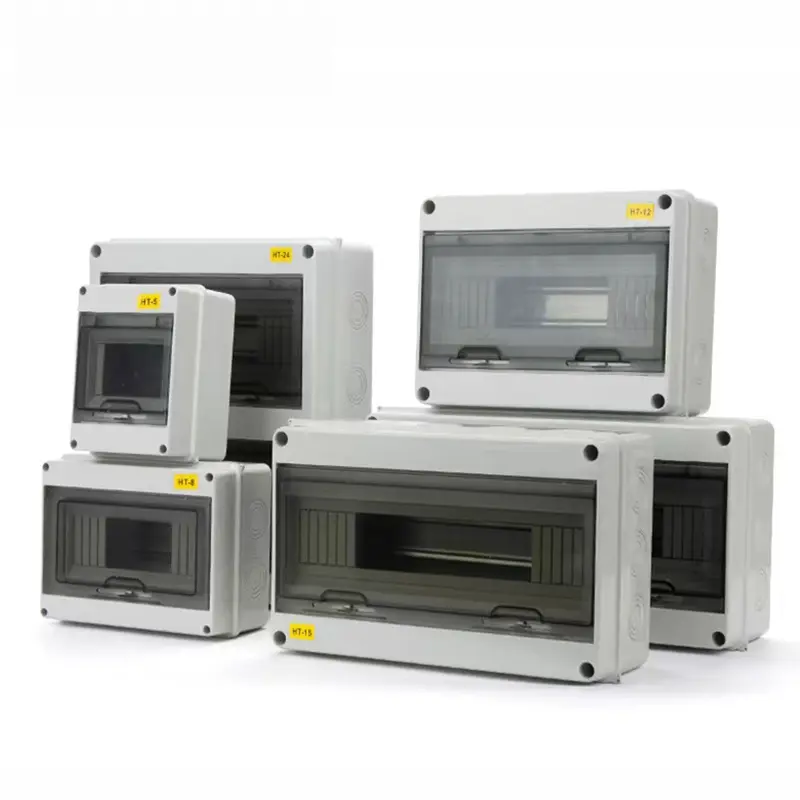

| Modello | Modi | Grado di protezione IP | Product Sizes(L*W*H) (mm) | peso del prodotto |
| HT-5 | 5ways | IP65 | 120*160*95 | 0.34KG |
| HT-8 | 8 modi | IP65 | 200*155*95 | 0.53KG |
| HT-12 | 12 vie | IP65 | 250*195*110 | 0.84KG |
| HT-15 | 15 modi | IP65 | 310*195*110 | 0.9KG |
| HT-18 | 18 modi | IP65 | 365*195*110 | 1.07KG |
| HT-24 | 24 modi | IP65 | 360*280*110 | 1.35KG |
