Key Features:
Panel Material
The panel is made from high-strength ABS engineering material, offering durability and color retention, while the transparent cover is made of polycarbonate (PC), ensuring clear visibility.
Push-type Opening and Closing Cover
The cover features a push-type mechanism for easy opening. A light press opens the panel, and the self-locking positioning hinge ensures secure, stable operation when open.
Wiring Design
The guide rail support plate can be lifted to the maximum movable position, making it easier to install wires without space limitations. The box is designed with wire grooves and exit holes for various wiring needs, allowing smooth installation of cables and conduits.
Base Installation
The bottom of the box includes self-tapping screw holes for easy assembly and installation. The hinge buckle can be installed on either the long side or the short side of the box for flexibility.
Optional Configurations
A front panel and various mounting accessories are available for customization. This series is also suitable for solar applications, functioning as a combiner box.
Product Specification

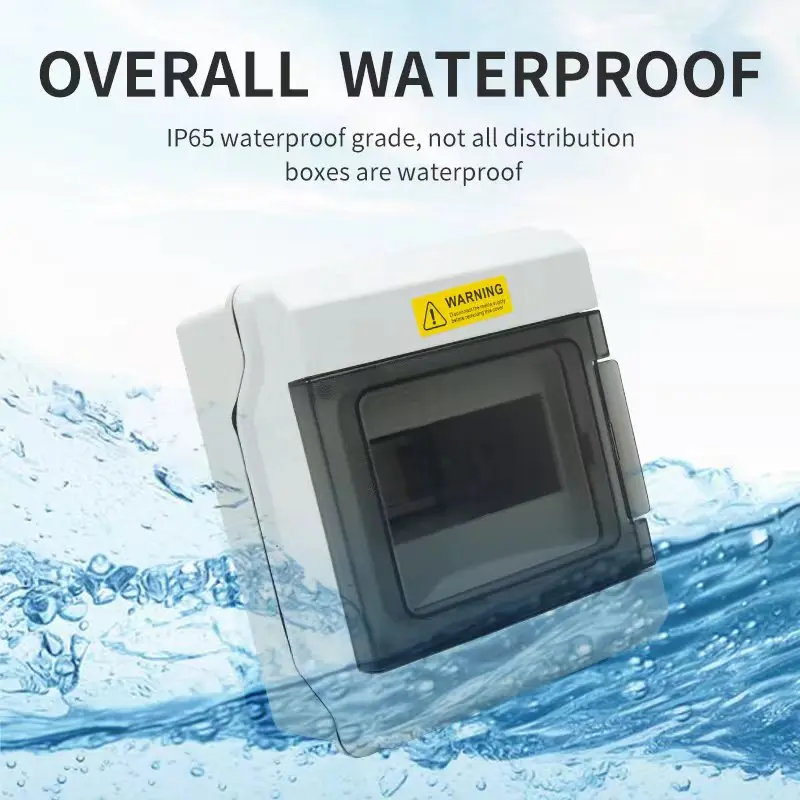

Model | Ways | IP Rating | Product Sizes(L*W*H) mm |
HPC-4 | 24 ways | IP65 | 107*212*92 |
HPC-6 | 6 ways | IP65 | 165*200*100 |
HPC-9 | 9 ways | IP65 | 219*200*100 |
HPC-12 | 12 ways | IP65 | 273*230*110 |
HPC-18 | 18 ways | IP65 | 381*230*110 |
HPC-24 | 24 ways | IP65 | 273*380*110 |
HPC-36 | 36 ways | IP65 | 381*380*110 |
