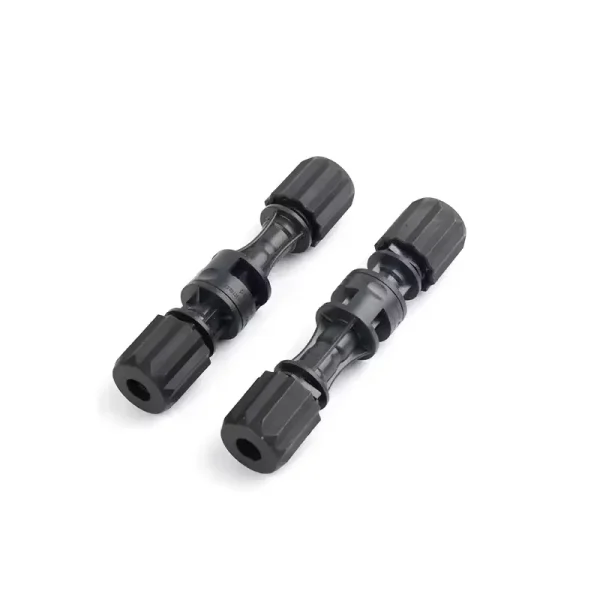

IP68 Plastic MC4 Solar Connectors 1500V DC

Color: Black
Rated voltage: 1000V (1500V also available)
Rated current: 30A or 50A
Protection grade: IP67 (waterproof and dustproof)
Contact resistance: ≤1mΩ
Operating Temperature Range: -40℃ to 90
Contact material: tinned copper
Connection method: crimp
Flame retardant grade: UL94V-0

Connection part

Use tinned copper for good conductivity and low contact resistance.
Not easy to oxidize or rust.

Shell

PPO plastic is used, high temperature resistant, flame retardant, also wear and dirt resistant.

Uses

Suitable for photovoltaic (solar) energy systems.

Product Advantages

PREMIUM CONDUCTIVITY: The tinned copper material is used to provide excellent conductivity, ensuring low contact resistance and more stable current transmission.

Strong durability: The shell is made of PPO plastic, which is not only high-temperature resistant and flame retardant, but also has excellent resistance to abrasion and pollution, making it suitable for a variety of harsh environments.

Advanced Protection: IP68 rated protection design effectively prevents water and dust intrusion, ensuring that the connector can maintain good performance even when used outdoors.

Wide Operating Temperature Range: Capable of normal operation in a wide range of temperatures from -40°C to 90°C, adapting to a variety of extreme climatic conditions.

High safety: Flame retardant rating up to UL94V-0 enhances the safety of use and reduces the risk of fire.

Flexible voltage and current specifications: Supports 1000V (1500V) DC voltage and 30A or 50A current to meet the needs of different solar systems.

Easy Installation: Crimp connection method is designed for quick and easy installation, ensuring a reliable electrical connection.

Detail

Place of Origin Zhejiang, China
Model Number RMC4.0-03A
Color Black
Rated Voltage 1000V DC
Rated Current 30A
Insulation Material PPO
Cable Spec 2.5mm²-6.0mm² 14AWG-10AWG
Pin Dimension 4.0mm
Proof Voltage 6000V AC(1Min) 2200V DC(1Min)
Temperature range -40℃ ~ +90℃
Contact Material Copper,Tin plated
Protection Degree IP67
Withdrawal /Temperature Force ≥50N/≤ 50N
